(S-826) compatible with vehicles from the following manufacturers: IVECO.
Assemble with: C020 / S511 / SK511

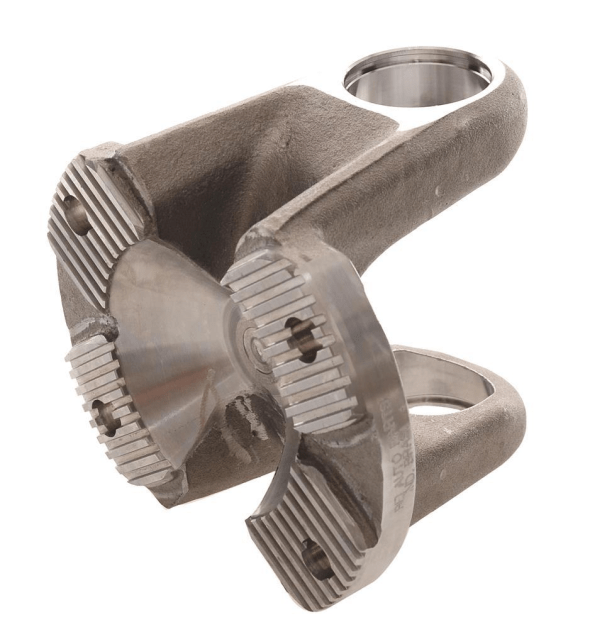

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
- Cardan Entre Diferenciais
Material: Steel
Extra: ARTICULAÇÃO MENOR
Original code: 41485 | 42533410 | 99488299
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
|---|---|---|---|---|---|---|---|---|
| S-826 | IVECO | Cardan, Cardan Entre Diferenciais | 180,00 | 110,00 | 147,40 | C-020 / C-020B / 2045005 | 52,00 | 15,50 |
