(S-822) compatible with vehicles from the following manufacturers: MERCEDES BENZ.

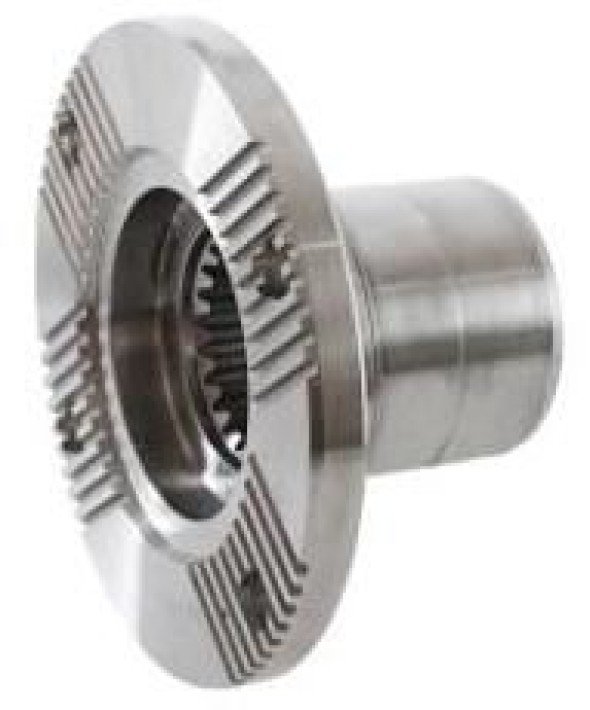

Description: COMPANION FLANGE GEARBOX GO190/6 - GO170/6 24 SPLINE (E) 4 HOLES
Applications:
- Cambio
Material: Steel
Extra: CAMBIO: MB GO190/6 / GO170/6
Original code: 3872643445 | 41639
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-822 | MERCEDES BENZ | Cambio | 79,50 | 180,00 | 102,50 | 15,50 | 24-E | 60,15 | 65,05 |
