(S-745) compatible with vehicles from the following manufacturers: TOYOTA.
Assemble with: S743 / S744 / SC10407 / SP3080 / SP3081 / SP-3082

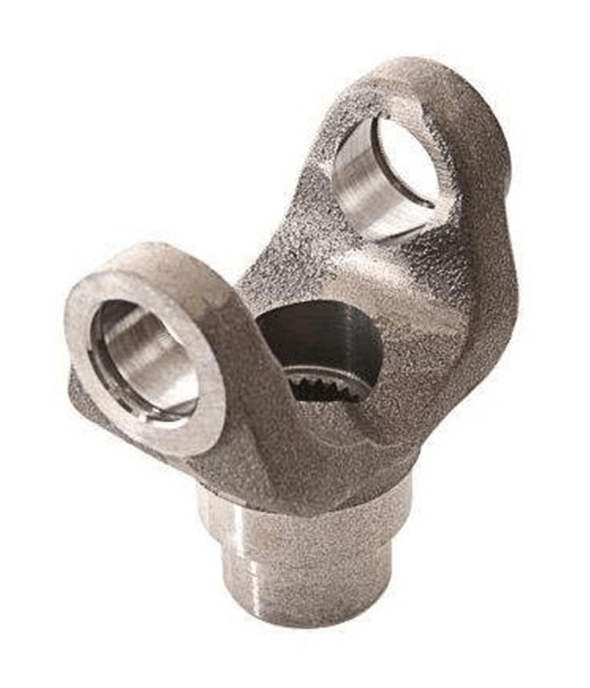

Description: END YOKE 29 SPLINE (E)
Applications:
- Central
Material: Nodular

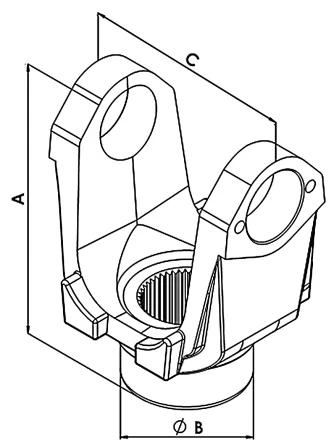

| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Ø Base do retentor |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| S-745 | TOYOTA | Central | 96,00 | 40,50 | 95,20 | 04371004080 / 0437100K130 | 30,15 | 29-E | 30,10 | 32,00 |
