(S-743) compatible with vehicles from the following manufacturers: TOYOTA.
Assemble with: S744 / S745 / SC10407 / SP3080 / SP3081 / SP3082

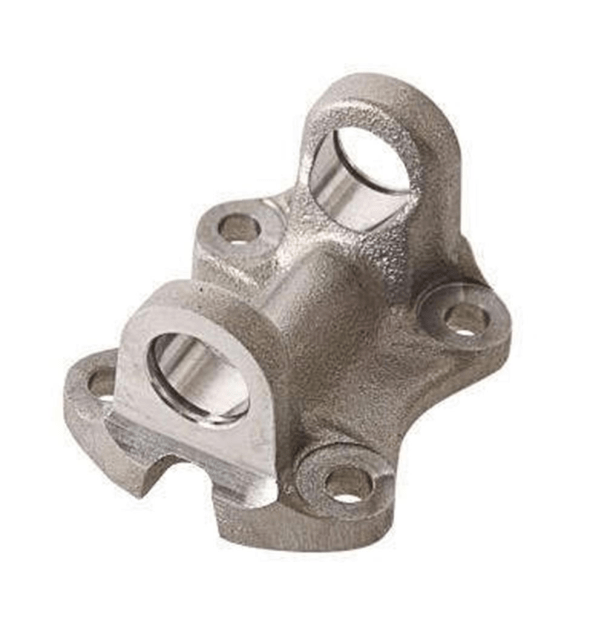

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Nodular
Extra: Ø DO PILOTO (ENCAIXE) 46MM
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
C ( mm ) Ø Furo |
Ø Piloto Encaixe |
Cruzeta |
Ø Cruzeta |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-743 | TOYOTA | Cardan | 47,50 | 92,00 | 11,50 | 46,00 | C-012 / 5178XS | 30,15 | 4 |
