(S-740) compatible with vehicles from the following manufacturers: MERCEDES BENZ e IVECO.
Assemble with: C014 / SC10340

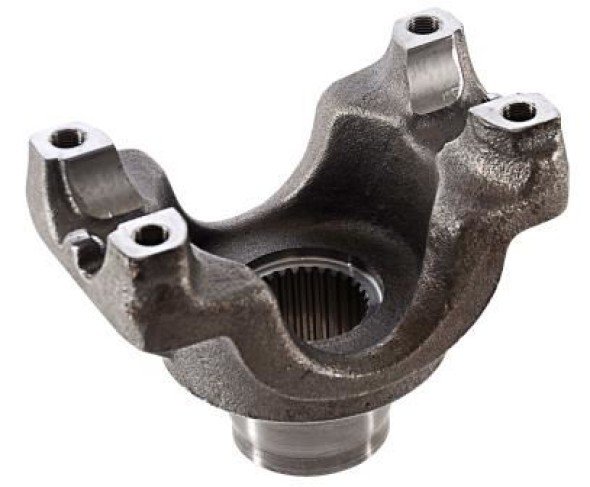

Description: END YOKE GEARBOX ZF S5-420 29 SPLINE (E) THREAD M10X1,0MM
Applications:
- Cambio
Material: Steel
Extra: CAMBIO: S5-42 / S5420 / 5S580BO / 5S580TO
Original code: 0002624245 | 049271 | 0501333580 | 1307206034 | 1307395078
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-740 | MERCEDES BENZ, IVECO | Cambio | 108,50 | 49,90 | C-014 / 5-275X / SPL70-1X | 126,10 | 34,90 | M10X1,00 | 29-E | 35,65 | 38,00 |
