(S-739) compatible with vehicles from the following manufacturers: VOLKSWAGEN.
Assemble with: C008 / S311 / S349 / S351 / SC10346 / SC10358 / SP3004 / SP3006 / SP3007 / SP3016 / SP3031

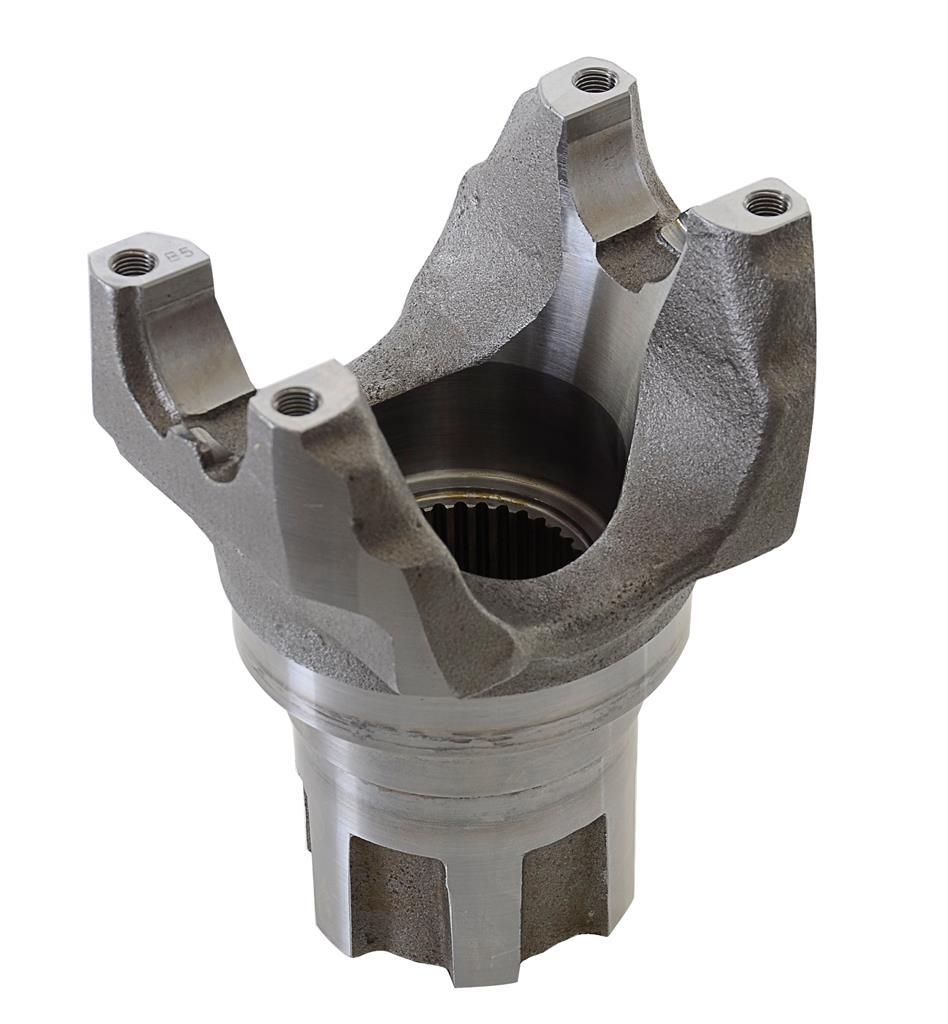

Description: END YOKE TRANSMISSION BOX ZF 6S-1010-BO 35 SPLINE (E) THREAD 3/8"X24 F.P.P
Applications:
- Cambio
Material: Steel
Extra: Câmbios: 6S1010BO - 6S1000TO - 6AS1010BO - 6AS1000TO
Original code: 2W0311809 | 1346304175
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-739 | VOLKSWAGEN | Cambio | 174,00 | 75,90 | C-008 / SPL90-1X | 126,00 | 41,30 | 3/8 | 35-E | 52,20 | 55,34 |
