(S-734) compatible with vehicles from the following manufacturers: TOYOTA.
Assemble with: C011 / S732 / S733 / S735 / SC10395 / SC10396 / SP3077 / SP3078 / SP3079

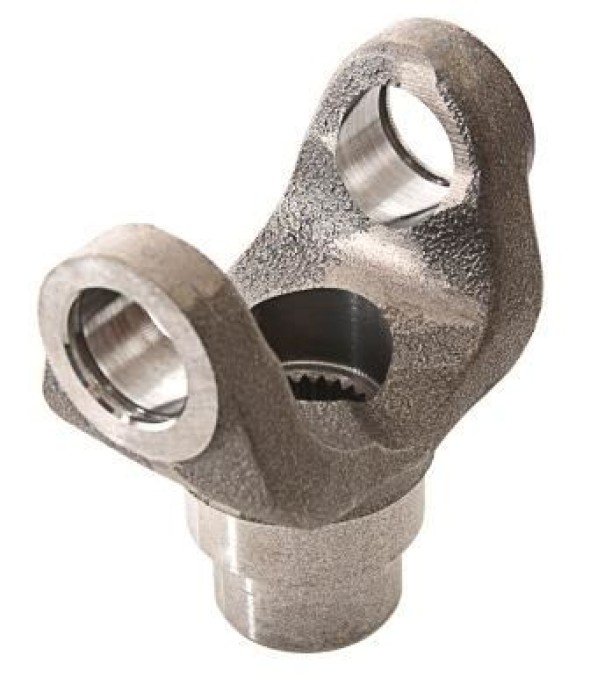

Description: END YOKE 26 SPLINE (E)
Applications:
- Central
Material: Nodular
Extra: 2005 Á 2015
Original code: 41711 | 5002008
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Ø Base do retentor |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| S-734 | TOYOTA | Central | 88,50 | 38,00 | 95,00 | C-011 / 5-273X | 27,00 | 26-E | 27,00 | 29,10 |
