(S-732) compatible with vehicles from the following manufacturers: TOYOTA.
Assemble with: C011 / S733 / S734 / S735 / SC10395 / SC10396 / SP3077 / SP3078 / SP3079

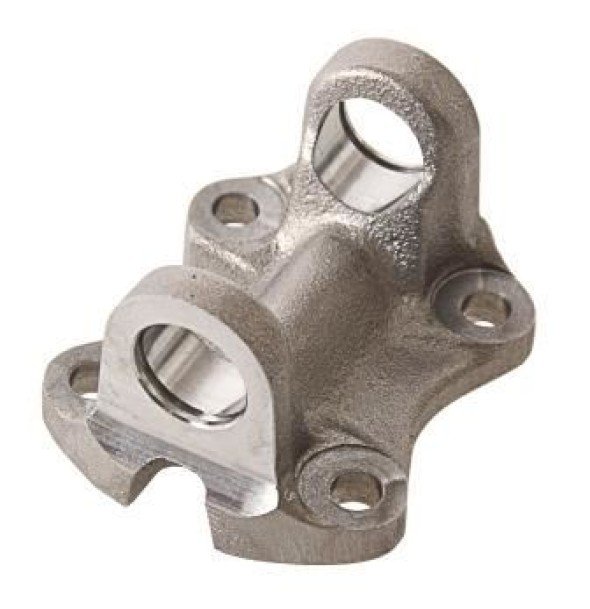

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Nodular
Extra: Ø DO PILOTO (ENCAIXE) 46MM / 2005 Á 2015
Original code: 41715 | RFL632 | 5001904
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
C ( mm ) Ø Furo |
Ø Piloto Encaixe |
Cruzeta |
Ø Cruzeta |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-732 | TOYOTA | Cardan | 45,50 | 92,00 | 11,50 | 46,00 | C-011 / 5273X | 27,00 | 4 |
