(S-729) compatible with vehicles from the following manufacturers: TOYOTA.
Assemble with: C010 / S730 / SC10394 / SP3075 / SP3076

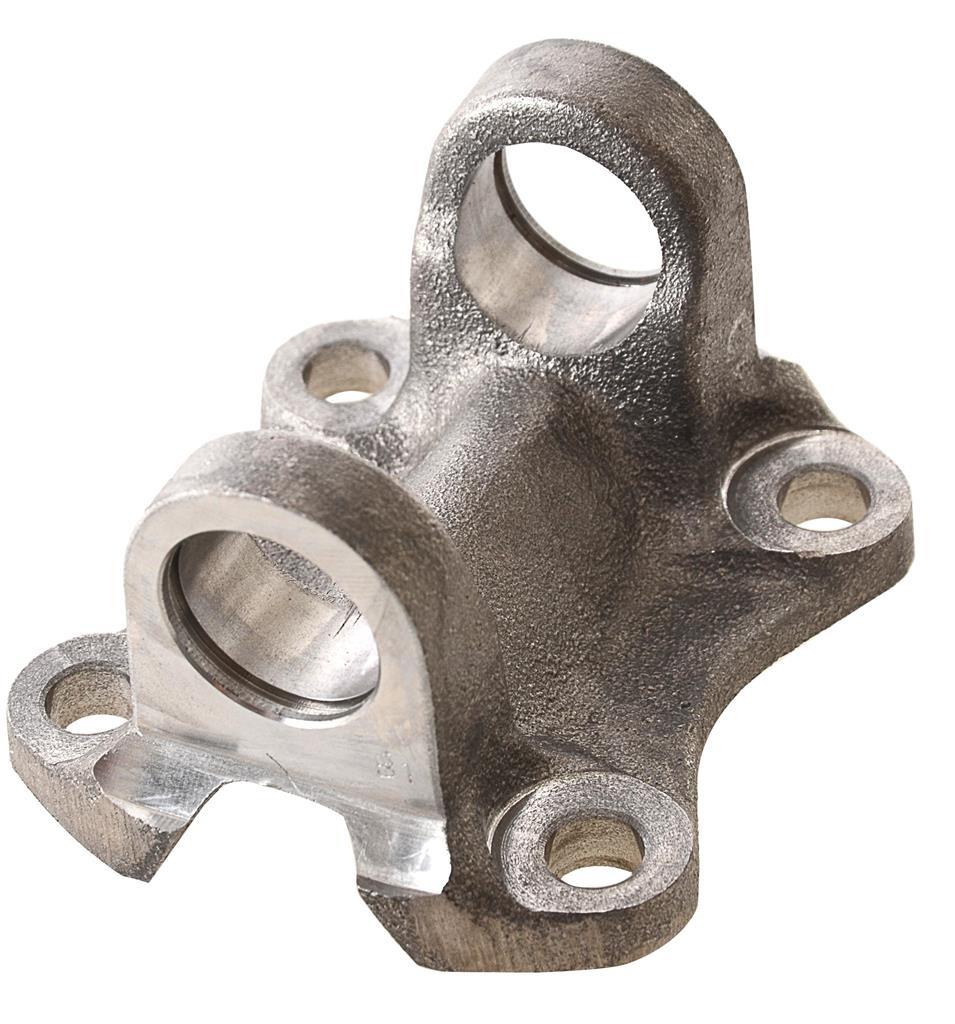

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Nodular
Extra: Ø DO PILOTO 46MM / 2005 Á 2015
Original code: 41497 | 5001902
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
C ( mm ) Ø Furo |
Ø Piloto Encaixe |
Cruzeta |
Ø Cruzeta |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-729 | TOYOTA | Cardan | 45,50 | 81,80 | 11,50 | 46,00 | C-010 / 5153X | 27,00 | 4 |
