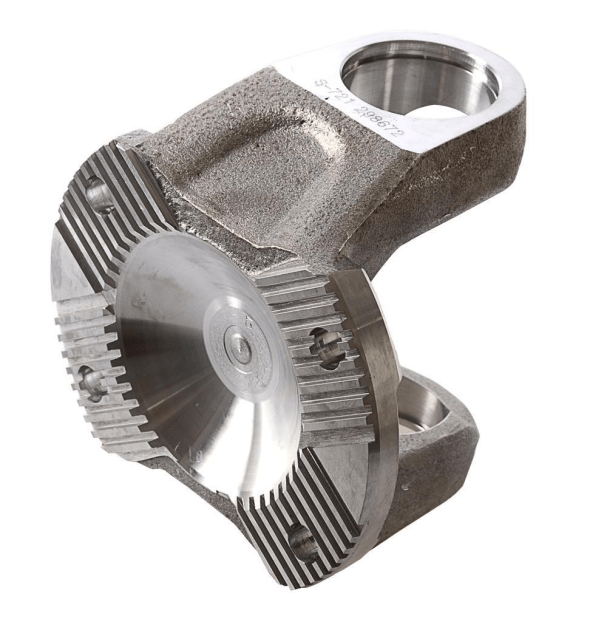

(S-721) compatible with vehicles from the following manufacturers: VOLKSWAGEN, VOLVO, MAN e IVECO.
Assemble with: S236 / S669 / S670 / S697 / SC10387 / SP3027
Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Steel
Extra: SUBSTITUI: S-669 / PEÇA REFORÇADA PARA VEICULOS EXTRA PESADOS
Original code: S-669
Original code: S-669
Original code: S-669
Original code: S-669
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
|---|---|---|---|---|---|---|---|---|
| S-721 | VOLKSWAGEN, VOLVO, IVECO, MAN | Cardan | 180,00 | 101,50 | 167,70 | C-031 / C-031B / 2060005 | 59,00 | 15,50 |
