(S-718) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S611 / S612 / S624 / S691 / SP3024

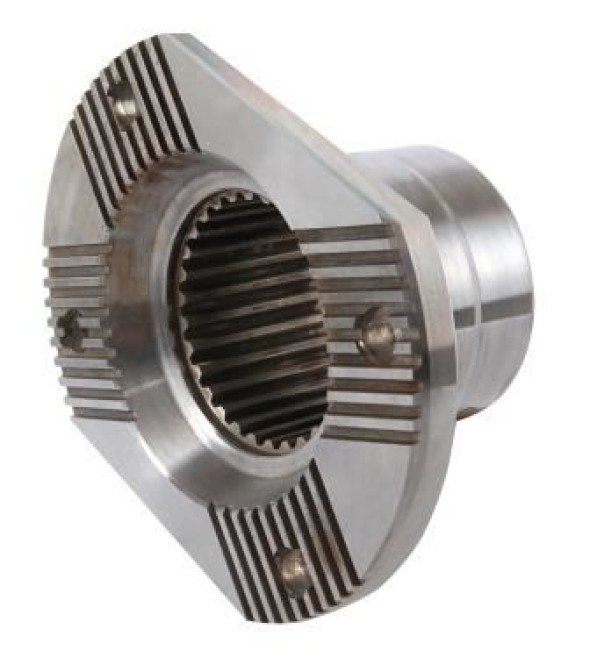

Description: COMPANION FLANGE GEARBOX MB 30 SPLINE (E) 4 HOLES
Applications:
- Cambio
Extra: CAMBIOS: G200 / G210 / G211 / G221 / G230 / G240 / G241 / G260 / G280 / G330-2
Código original: 9452620245 / 9452620545 / 3892620645
Material: Aço
| Reference | Measure A (mm) | Measure B (mm) | Measure C (mm) | Stretch marks | Diameter A Smaller (mm) | Diameter B Bigger (mm) | Diâmetro do Furo (mm) |
|---|---|---|---|---|---|---|---|
| S-718 | 93,7 | 200 | 98,5 | 30-E | 75,1 | 80 | 15,5 |
