(S-717) compatible with vehicles from the following manufacturers: MERCEDES BENZ, FORD e VOLKSWAGEN.
Assemble with: C013

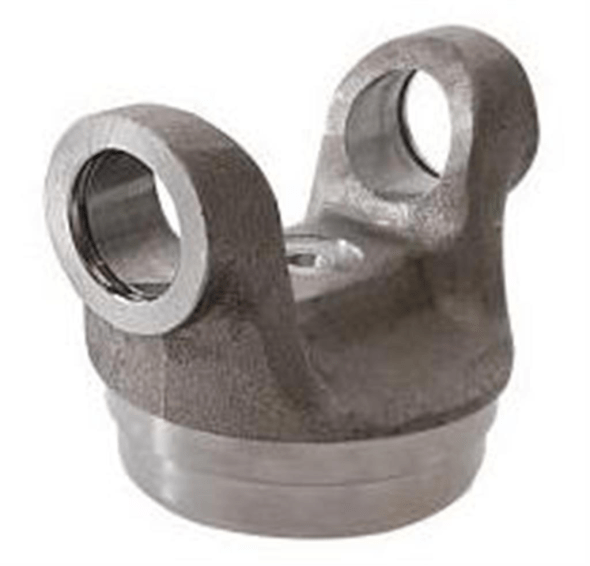

Description: WELD YOKE
Applications:
- Cardan
Material: Steel
Original code: 6904110005
Original code: 6904110005 | 301070 | 801310 | GR1037 | NC06014 | SG24 | 328557
Original code: 6904110005 | 301070 | 801310 | GR1037 | NC06014 | SG24 | 328557
Original code: 6904110005 | 301070 | 801310 | GR1037 | NC06014 | SG24 | 328557
| Reference | Manufacturer(s) | Segment | A (mm) Base Solda Tubo Base Solda Tubo |
B (mm) Altura Encosto Solda ao Centro Olhal Altura Encosto Solda ao Centro Olhal |
C (mm) Comprom. Cruzetas s/ Travas Comprim. Cruzetas s/ Travas |
Cruzeta |
Cruzeta |
|---|---|---|---|---|---|---|---|
| S-717 | MERCEDES BENZ, FORD, FORD, VOLKSWAGEN, MERCEDES BENZ | Cardan | 85,00 | 55,00 | 106,30 | C-013 / 5-160X | 30,20 |
