(S-713) compatible with vehicles from the following manufacturers: MERCEDES BENZ.

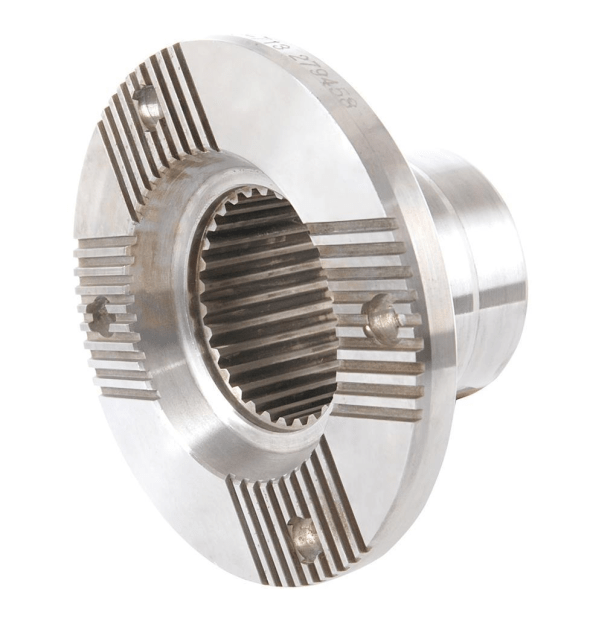

Description: COMPANION FLANGE GEARBOX MB 30 SPLINE (E) 4 HOLES
Applications:
- Cambio
Material: Steel
Extra: CAMBIOS: G210 / G211 / G221 / G231 / G240 / G241 / G260 / G280 / G281 / G330
Original code: 9452620045 | 3892620445
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-713 | MERCEDES BENZ | Cambio | 93,70 | 180,00 | 96,50 | 15,50 | 30-E | 75,10 | 80,00 |
