(S-707) compatible with vehicles from the following manufacturers: MERCEDES BENZ.

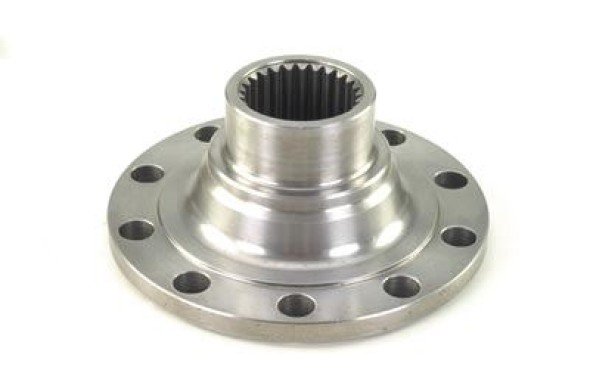

Description: COMPANION FLANGE 26 SPLINE (E) 10 HOLES
Applications:
- Diferencial
Material: Nodular
Extra: DIFERENCIAL: HL7
Original code: 3853531245
Original code: 41276 | SA09 | S398
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-707 | MERCEDES BENZ, MERCEDES BENZ | Diferencial | 68,00 | 180,00 | 75,50 | 16,00 | 10 | 26-E | 50,30 | 55,20 |
