(S-705) compatible with vehicles from the following manufacturers: MERCEDES BENZ, VOLVO e INTERNATIONAL.
Assemble with: C017 / S336 / S342 / S343 / S386 / S609 / S621 / S683 / SC10369 / SC10410 / SP3002

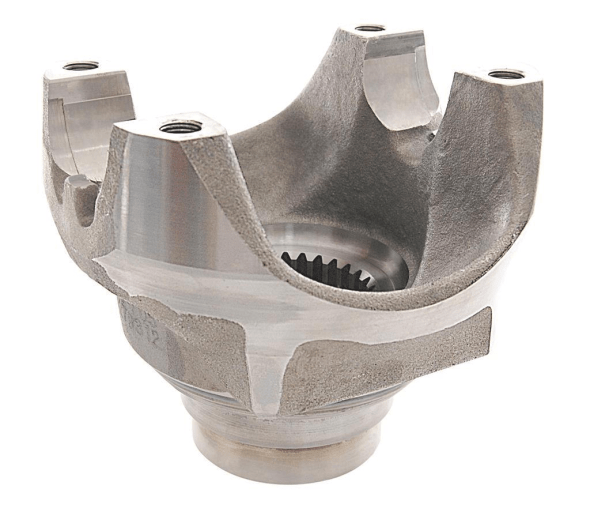

Description: END YOKE GEARBOX EATON 30 SPLINE (E) THREAD M12X1,25MM
Applications:
- Cambio
Material: Steel
Extra: CAMBIO: ES1109 / FS6209A / FS8209A
Original code: 0002649745 | 22387327 | 140417211 | 41655 | 3004225
Original code: 0002649745 | 22387327 | 140417211 | 41655 | 3004225
Original code: 0002649745 | 22387327 | 140417211 | 41655 | 3004225
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-705 | MERCEDES BENZ, VOLVO, INTERNATIONAL | Cambio | 136,50 | 70,00 | C-017 / SPL140-1X | 138,60 | 49,20 | M12X1,25 | 30-E | 58,20 | 62,60 |
