(S-702) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S315 / S397 / SC10356 / SP3048

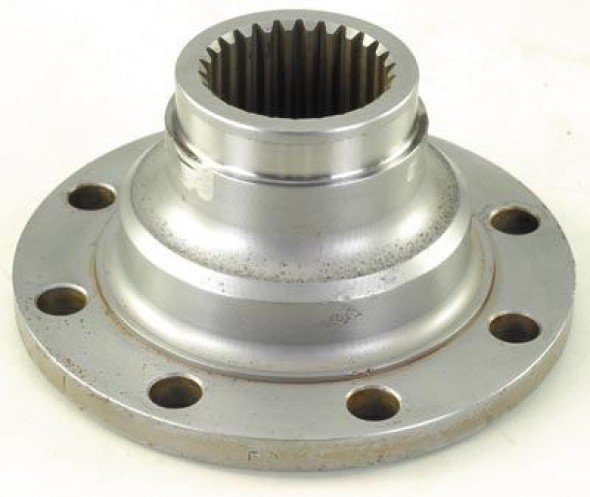

Description: COMPANION FLANGE 26 SPLINE (E) 8 HOLES
Applications:
- Central
Material: Nodular
Original code: 3354100130
Original code: 41274 | SA07 | S397
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-702 | MERCEDES BENZ, MERCEDES BENZ | Central | 68,00 | 165,00 | 78,00 | 14,00 | 8 | 26-E | 50,30 | 55,20 |
