(S-700) compatible with vehicles from the following manufacturers: VOLVO.

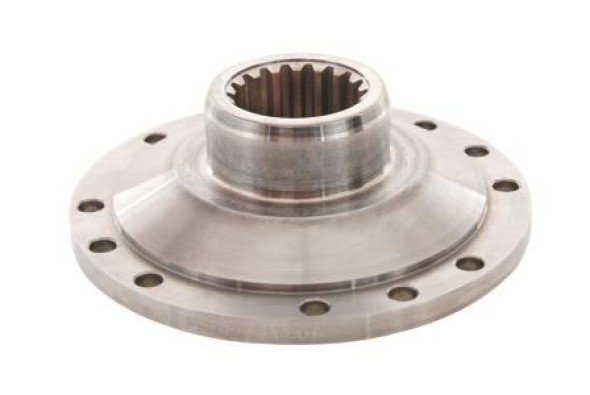

Description: COMPANION FLANGE 18 SPLINE (E) 12 HOLES
Applications:
- Diferencial
Material: Steel
Extra: DIFERENCIAL: EV80 / EV81
Original code: 104044 | SA02 | 01342
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-700 | VOLVO | Diferencial | 80,00 | 176,50 | 64,00 | 11,50 | 12 | 18-E | 54,00 | 60,43 |
