(S-697) compatible with vehicles from the following manufacturers: VOLKSWAGEN, VOLVO e IVECO.
Assemble with: S236 / S669 / S670 / S697 / S721 / SC10387 / SP3027

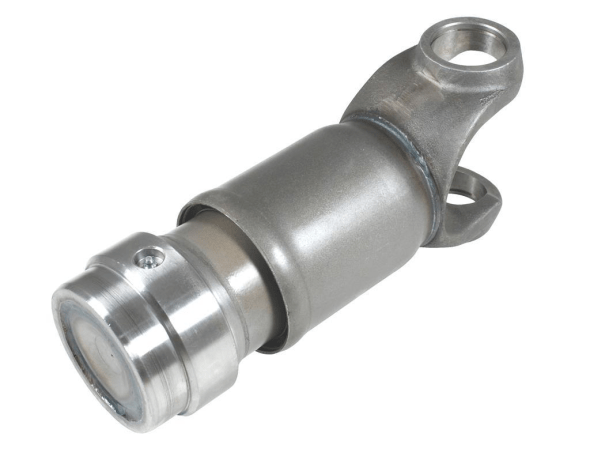

Description: SLIP YOKE ASSY. 40 SPLINE WITH GREASE NIPPLE (E)
Applications:
- Cardan
Material: Steel
Extra: Nº ORIG. VOLVO DA CRUZETA: 1068253
Original code: 41635 | CJS2060 | HPL604 | 2060058
Original code: 41635 | CJS2060 | HPL604 | 2060058
Original code: 41635 | CJS2060 | HPL604 | 2060058
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento centro olhal ate encosto tubo |
B ( mm ) Comprimento cruzeta sem travas |
C ( mm ) Ø Base encaixe do tubo |
Cruzeta |
Ø Cruzeta ( mm ) |
Quant. Estrias |
|---|---|---|---|---|---|---|---|---|
| S-697 | VOLKSWAGEN, VOLVO, IVECO | Cardan | 285,00 | 167,70 | 118,00 | C-031 / 2060005 | 59,00 | 40-E |
