(S-690) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C006 / S628 / S629 / S637 / SP3024

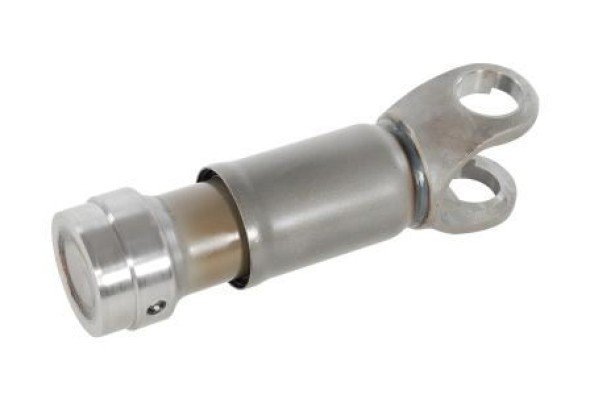

Description: SLIP YOKE ASSY. 32 SPLINE (E) WITH GREASE NIPPLE (LENGTH)
Applications:
- Cardan
Extra: ESTRIAS PADRÃO REI AUTO PARTS / Nº ORIG. MB DA CRUZETA: 6564100031
Material: Aço

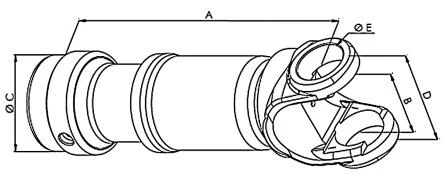

| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Measure C (mm) | Measure E (mm) | Stretch marks | Measure D (mm) |
|---|---|---|---|---|---|---|---|
| S-690 | 5-12018X/CZ-276 | 400 | 95 | 130,3 | 68 | 32 - E | 158,3 |
