(S-684) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN, INTERNATIONAL e IVECO.
Assemble with: C002 / C021 / S333 / S366 / SC10344 / SC10358 / SP3001 / SP3012 / SP3015 / SP3022 / SP3022N

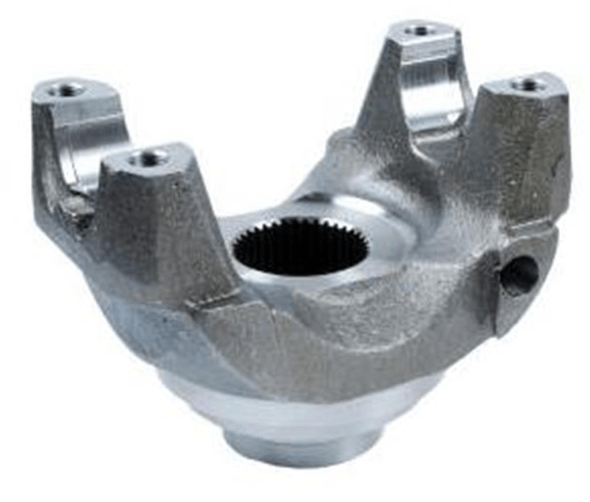

Description: END YOKE 38 SPLINE THREAD 1/2"X20 F.P.P
Applications:
- Cardan
Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF
Código original: TMJ521211
Material: Nodular
Código original: BF1X4865A
Material: Nodular
Código original: 503353876
Material: Nodular
Material: Nodular
Código original: BF1X4865A
Material: Nodular
Material: Nodular
Código original: 503353876
Material: Nodular
Código original: TM1521211
Material: Nodular
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-684 | 5-515X | 141 | 62 | 49,2 | 38-E | 1/2" | 154 | 47,6 | 50,6 |
