(S-682) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: C002 / C021

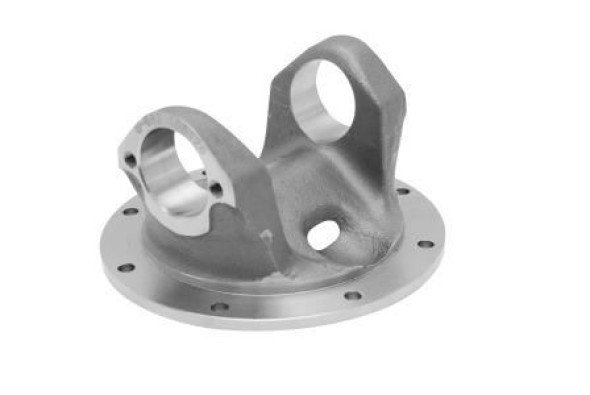

Description: FLANGE YOKE 8 HOLES
Applications:
- Cardan
Material: Steel
Original code: 17NF1 | 41319
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-682 | LINHA AMARELA | Cardan | 203,50 | 76,00 | 154,00 | C-002 / C021 / 5515X / 5280X | 49,20 | 10,50 | 8 |
