(S-681) compatible with vehicles from the following manufacturers: VOLKSWAGEN.
Assemble with: C002 / C021 / S674

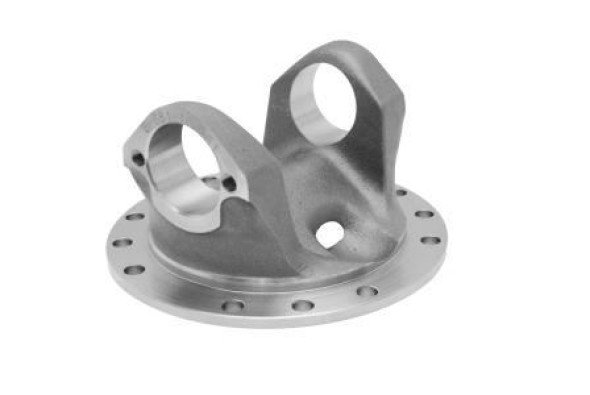

Description: FLANGE YOKE 12 HOLES
Applications:
- Cardan
Material: Steel
Original code: 41229 | AT1968 | 2Z0521145A | 62749
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-681 | VOLKSWAGEN | Cardan | 203,50 | 76,00 | 154,00 | C-002 / C021 / 5515X / 5280X | 49,20 | 11,50 | 12 |
