(S-677) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S368 / S676 / SC10381

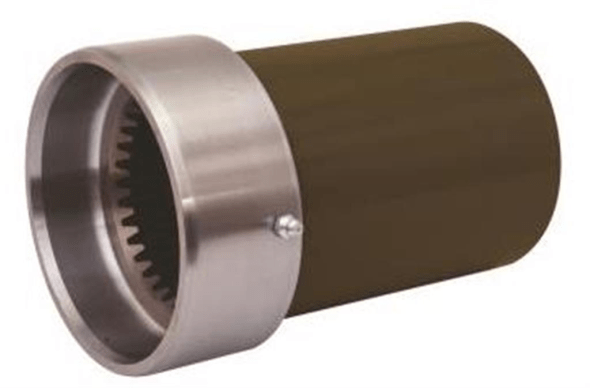

Description: SPLINED SLEEVE 34 SPLINE (E) WITH GREASE NIPPLE
Applications:
- Cardan
Material: Aço
| Reference | Measure A (mm) | Measure B (mm) | Measure C (mm) | Stretch marks | Measure D (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|
| S-677 | 210 | 160 | 110,45 | 34 - E | 105,4 | 82,85 | 87,6 |
