(S-676) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C025 / S368 / S677 / SC10381

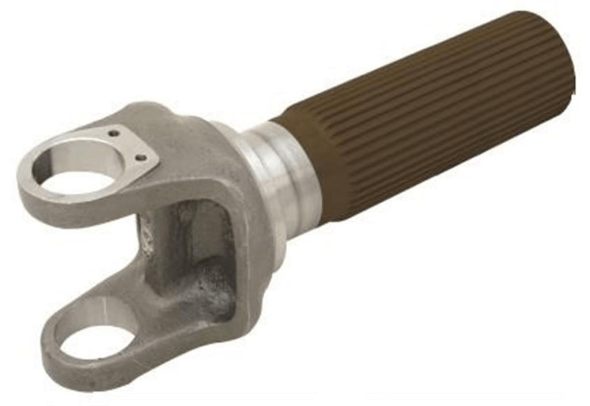

Description: YOKE SHAFT 34 SPLINE (E)
Applications:
- Cardan Entre Diferenciais
Material: Steel
Original code: 41601
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Ø Base das estrias |
C (mm) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| S-676 | MERCEDES BENZ | Cardan Entre Diferenciais | 345,00 | 87,20 | 166,00 | C-025 / SPL170-1X | 55,00 | 34-E | 81,60 | 87,20 |
