(S-674) compatible with vehicles from the following manufacturers: VOLKSWAGEN.
Assemble with: S681 / SC10350

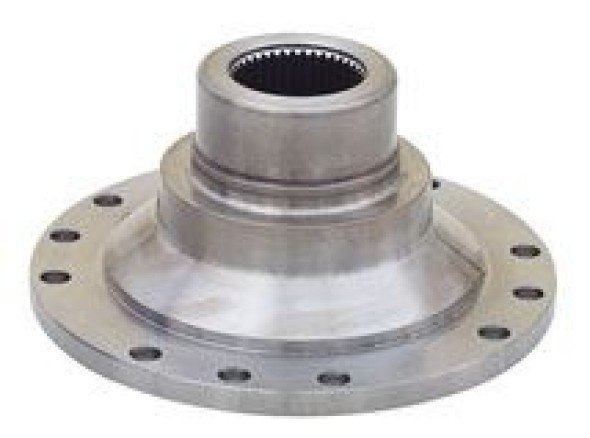

Description: COMPANION FLANGE 39 SPLINE (E) 12 HOLES
Applications:
- Diferencial
Material: Steel
Extra: DIFERENCIAL: MS155
Original code: 3260T1944 | 35381 | 5003784
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-674 | VOLKSWAGEN | Diferencial | 76,20 | 203,50 | 93,00 | 11,50 | 12 | 39-E | 48,80 | 51,40 |
