(S-661) compatible with vehicles from the following manufacturers: VOLKSWAGEN.
Assemble with: C016 / S303 / S308 / S620

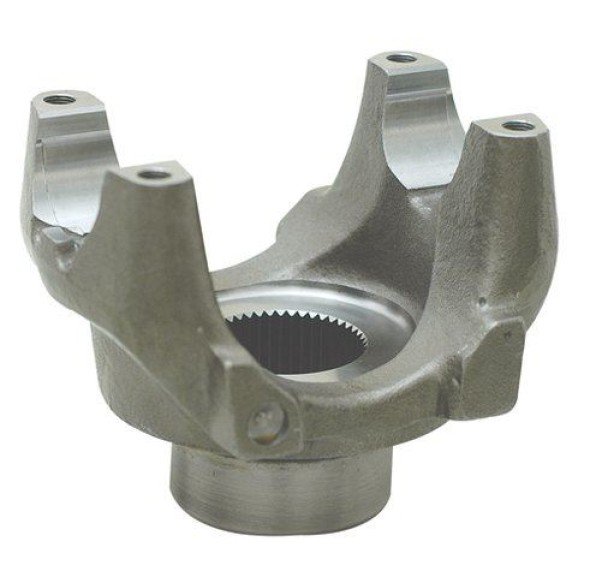

Description: END YOKE 46 SPLINE (E) THREAD M12X1,25MM
Applications:
- Diferencial
Material: Steel
Extra: DIFERENCIAIS: MS185 / MS186
Original code: 2V2525283 | 25042811 |25043011 | 35335
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-661 | VOLKSWAGEN | Diferencial | 159,00 | 82,60 | C-016 / SPL250-1X | 163,00 | 60,00 | M12X1,25 | 46-E | 57,50 | 60,20 |
