(S-660) compatible with vehicles from the following manufacturers: VOLVO.
Assemble with: C017 / S336 / S342 / S343 / S621 / S683 / SC10410 / SP3002

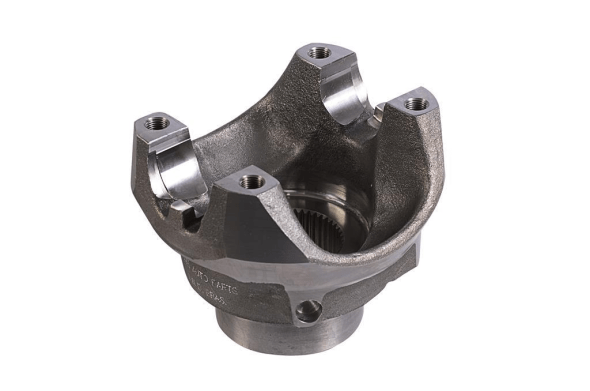

Description: END YOKE 46 SPLINE (E) THREAD M12X1,25MM
Applications:
- Diferencial
Material: Steel
Extra: DIFERENCIAIS: RSS1035A / MS155
Original code: 20521435 | 20521434 | 140415311 | 41439 | ST69 | A36260V1894
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-660 | VOLVO | Diferencial | 128,00 | 83,00 | C-017 / SPL140-1X | 138,60 | 49,20 | M12X1,25 | 46-E | 57,50 | 60,20 |
