(S-659) compatible with vehicles from the following manufacturers: MERCEDES BENZ e VOLVO.
Assemble with: C025 / S368 / S399 / S658 / SC10381

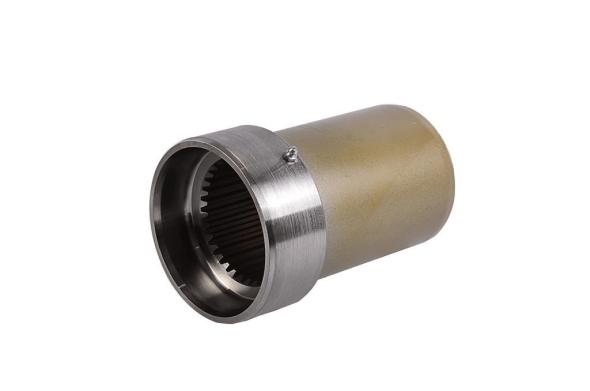

Description: SPLINED SLEEVE 34 SPLINE (E) WITH GREASE NIPPLE
Applications:
- Cardan
Material: Steel
Extra: BICO GRAXEIRO
Original code: 170-55-51-1 | 41428
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento total |
B ( mm ) Comprimento da base ate o pescoço |
Ø C ( mm ) Ø Encaixe do garfo |
Ø D ( mm ) Ø Base da luveira |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-659 | MERCEDES BENZ, VOLVO | Cardan | 185,00 | 155,50 | 110,50 | 105,20 | 34-E | 82,85 | 87,60 |
