(S-657) compatible with vehicles from the following manufacturers: VOLVO.
Assemble with: C025 / S500 / SK500

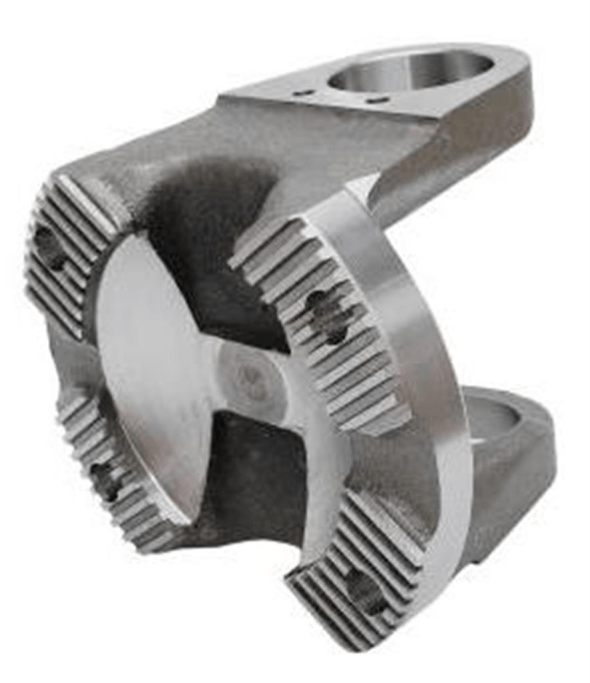

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Steel
Extra: ENTRE DIFERENCIAIS / Nº ORIG. VOLVO DA CRUZETA: 8127230
Original code: 8127229 | 101038 | 801218 | AT1076 |
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
|---|---|---|---|---|---|---|---|---|
| S-657 | VOLVO | Cardan | 180,00 | 111,00 | 164,00 | C-025 / SPL1701X | 55,00 | 15,50 |
