(S-655) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S337 / S656 / S665 / SC10377

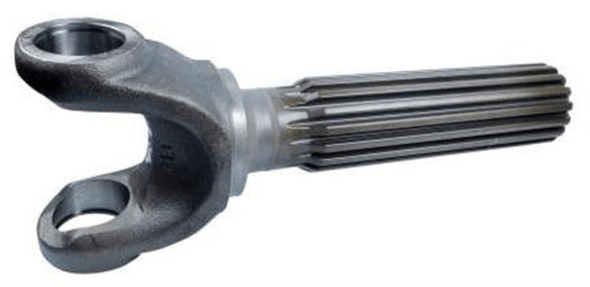

Description: YOKE SHAFT 16 SPLINE (R)
Applications:
- Cardan
Material: Steel
Extra: Nº ORIG. MB DAS CRUZETAS: 6204100031
Original code: 41286
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Ø Base das estrias |
C (mm) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| S-655 | MERCEDES BENZ | Cardan | 414,00 | 76,10 | 151,90 | C-019 / C-019B / 5-12932X | 57,00 | 16-R | 60,20 | 76,10 |
