(S-650) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C016 / S303 / S308 / S620 / SC10410 / SP3011 / SP3021

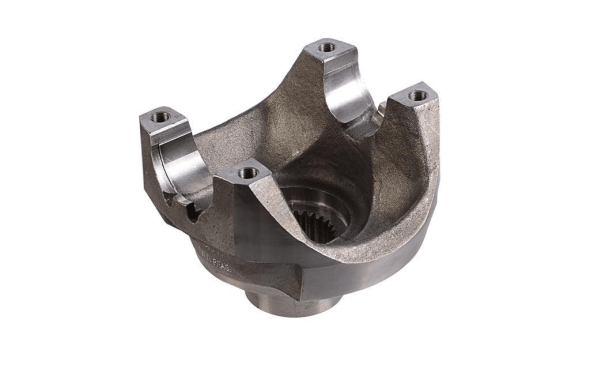

Description: END YOKE 26 SPLID (E) THREAD M12X1,25MM
Applications:
- Diferencial
Material: Steel
Original code: 6343520044 | 35190 | ST88
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-650 | MERCEDES BENZ | Diferencial | 139,00 | 67,90 | C-016 / SPL250-1X | 163,00 | 60,00 | M12X1,25 | 26-E | 50,30 | 55,20 |
