(S-649) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN e IVECO.
Assemble with: C021 / S366 / S625 / SC10350 / SK012 / SP3012 / SP3015 / SP3022 / SP3022N

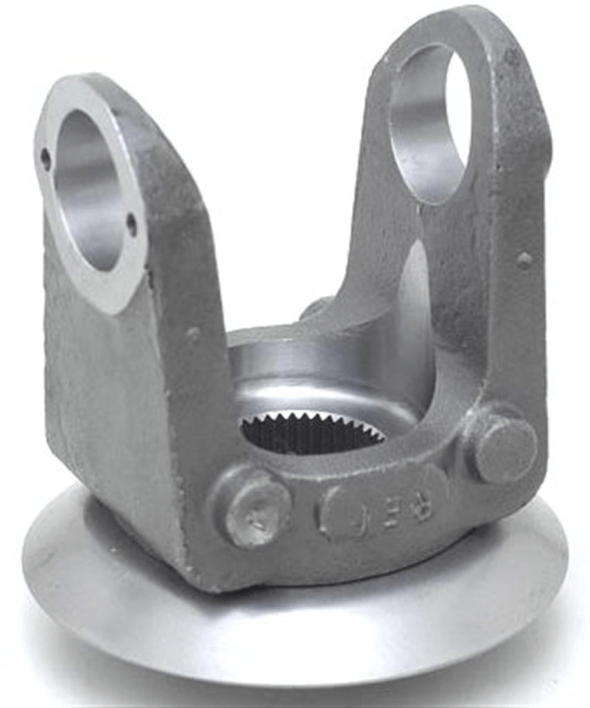

Description: END YOKE 39 SPLINE (E)
Applications:
- Diferencial
Extra: DIFERENCIAIS: MR145 / RS145 / RS155 / RS240 / MD168 / COM DEFLETOR | SAIDA DO 1º DIFERENCIAL
Código original: 2U0525283A
Material: Aço
Código original: BG5X4851AA
Material: Aço
Material: Aço
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|
| S-649 | 5-280X | 159 | 76,2 | 49,2 | 39 - E | 154,7 | 48,8 | 51,4 |
