(S-638) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN, CHEVROLET GMC, INTERNATIONAL, AGRALE e IVECO.
Assemble with: C015 / S366 / SC10344 / SC10358 / SP3001 / SP3012 / SP3015 / SP3022 / SP3022N

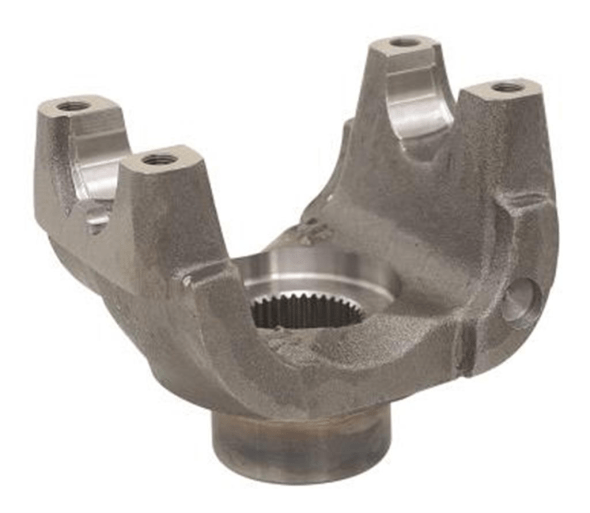

Description: END YOKE GEARBOX EATON FS6306A 38 SPLINE (E) THREAD 1/2"X20 F.P.P
Applications:
- Cambio
Extra: FS6306A / FS6406A / FSB6406A / FS6306B / FSB6406B / FS6305A / FS5306A / FS5406A / FS6406B / FSBO6406A
Código original: 2TB311963
Material: Aço
Material: Aço
Código original: BG2X7089AA
Material: Aço
Código original: 503355996
Material: Aço
Material: Aço
Código original: 6112004082001
Material: Aço
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-638 | 5-515X | 14,15 | 69,9 | 49,2 | 38-E | 1/2" | 154 | 47,6 | 50,6 |
