(S-635) compatible with vehicles from the following manufacturers: FORD e VOLKSWAGEN.
Assemble with: C015 / S422 / SC10344 / SP3018 / SP3020

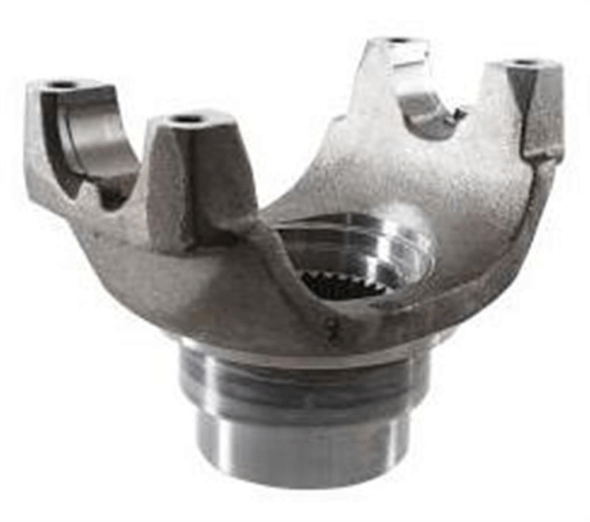

Description: END YOKE GEARBOX ZF 16S150 38 SPLINE (E) THREAD 1/2"X20 F.P.P
Applications:
- Cambio
Material: Steel
Extra: CAMBIOS: 16S1455TD / 16S150VW / 16S1650
Original code: 2T0311809 | 65449511 |0091338055 | 301051 | ST86
Original code: 2T0311809 | 65449511 |0091338055 | 301051 | ST86
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-635 | VOLKSWAGEN, FORD | Cambio | 157,00 | 9000 | 5-510X | 194,00 | 49,20 | 1/2 | 38-E | 76,00 | 80,50 |
