(S-634) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C008 / S305 / S350 / S311 / SC10347 / SC10358 / SP3004 / SP3006 / SP3007 / SP3016 / SP3031

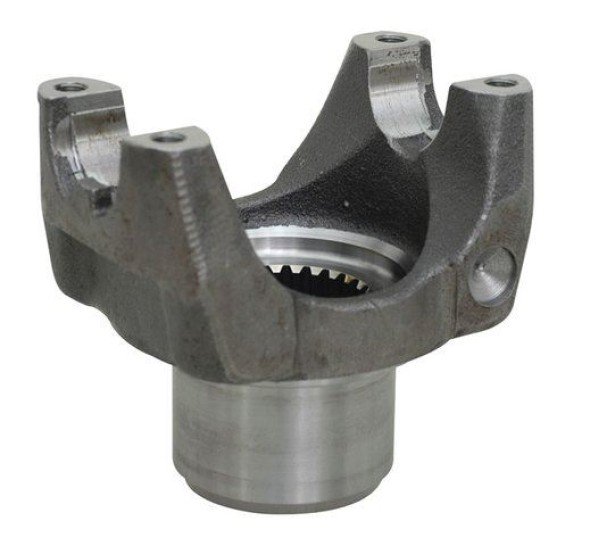

Description: END YOKE GEARBOX MB G60/6 BOX ALUMINUM 26 SPLINE (E) THREAD M10X1,0MM
Applications:
- Cambio
Material: Steel
Extra: Câmbio G60/6
Original code: 9702621445 | 41335 | st74
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-634 | MERCEDES BENZ | Cambio | 127,00 | 69,90 | C-008 / SPL90-1X | 126,00 | 41,30 | M10X1,00 | 26-E | 51,25 | 54,80 |
