(S-630) compatible with vehicles from the following manufacturers: VOLVO.
Assemble with: S401 / S402 / S412 / S458 / SC10358 / SP3051

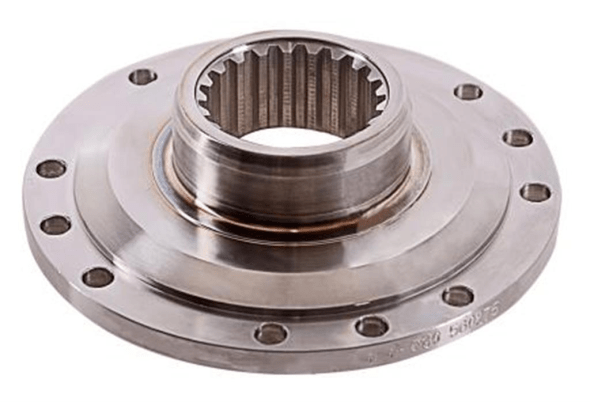

Description: COMPANION FLANGE 21 SPLINE (E) 12 HOLES
Applications:
- Diferencial
Material: Steel
Extra: DIFERENCIAIS: EV71 / 72 / 87 / 90 / 91
Original code: 1524358 | 101077 | SA26
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-630 | VOLVO | Diferencial | 90,00 | 203,50 | 52,50 | 11,50 | 12 | 21-E | 63,85 | 69,90 |
