(S-629) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C006 / S628 / S680 / S690

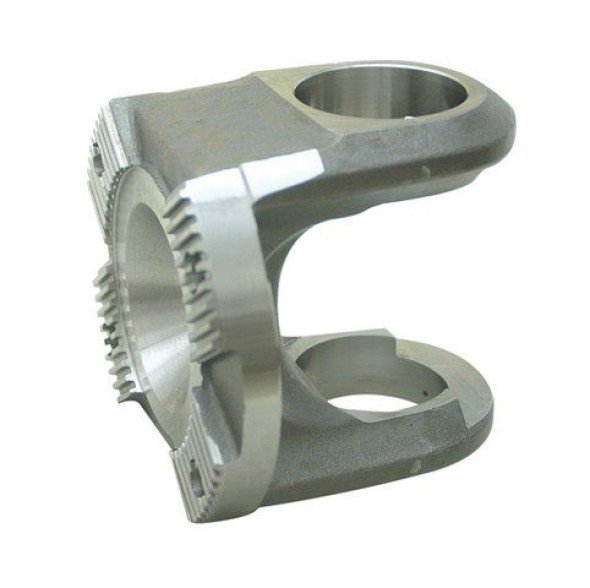

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Steel
Extra: Nº ORIG. MB DA CRUZETA: 6564100031
Original code: 41192 | 6564110011
| Reference | Manufacturer(s) | Segment | A ( mm ) Medida trava da cruzeta - Interna |
B ( mm ) Ø do disco |
C ( mm ) Altura face ate centro olhal |
Ø D ( mm ) Ø Cruzeta |
Ø E ( mm ) Ø Furo |
F ( mm ) Medida trava cruzeta - Externo |
Cruzeta |
|---|---|---|---|---|---|---|---|---|---|
| S-629 | MERCEDES BENZ | Cardan | 95,00 | 176,00 | 101,50 | 68,00 | 15,50 | 158,30 | C-006 / 512018X |
