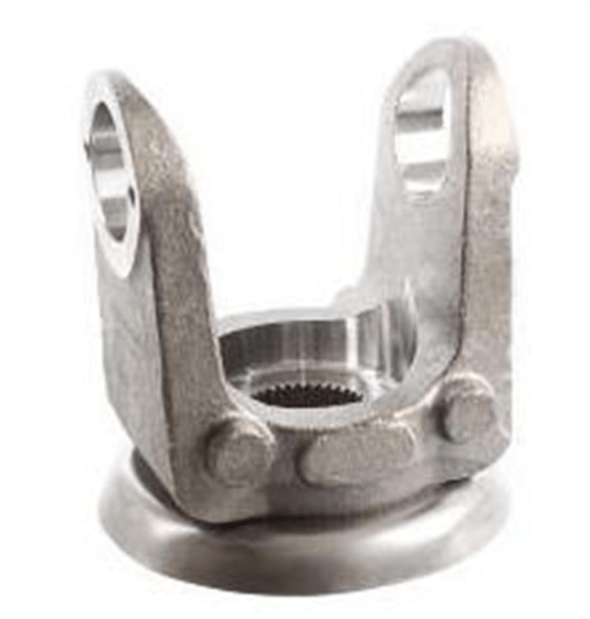

S-625 Terminal de orelha

Embalagem com 1 peça

Peso: 5,9 (kg)

(S-625) compatible with vehicles from the following manufacturers: FORD e VOLKSWAGEN.

Assemble with: C021 / S366 / S649 / SC10350 / SK012 / SP3012 / SP3015 / SP3022 / SP3022N

Description: END YOKE 46 SPLINE (E)

Applications:
- Diferencial

Extra: DIFERENCIAL: MR168 / ENTRADA DO 2º DIFERENCIAL / COM DEFLETOR

manufacturers

FORD

VOLKSWAGEN

Access catalog

VOLKSWAGEN

Código original: 2U0525283B

Material: Aço

Constellation:

31320 Constellation Cosntellation 31310 31370 Constellation 31330 Constellation

CONSTELLATION:

FORD

Código original: BG5X4851BA

Material: Aço

Cargo:

Cargo 3132 Cargo 2932E Cargo 5031 Cargo 5032 Cargo 6332E Cargo 2831 Cargo 3121E Cargo 3131E Cargo 3133E

Terminal de orelha

Reference	Crosshead	Measure A (mm)	Measure B (mm)	Crosshead Diameter (mm)	Stretch marks	Crosshead Length (mm)	Diameter A Smaller (mm)	Diameter B Bigger (mm)
S-625	5-280X	159	82,6	49,2	46 - E	154,7	57,5	60,2

Reference

S-625

Crosshead

5-280X

Measure A (mm)

159

Measure B (mm)

82,6

Crosshead Diameter (mm)

49,2

Stretch marks

46 - E

Crosshead Length (mm)

154,7

Diameter A Smaller (mm)

57,5

Diameter B Bigger (mm)

60,2
