(S-624) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S611 / S612 / S691 / S718 / SP3024

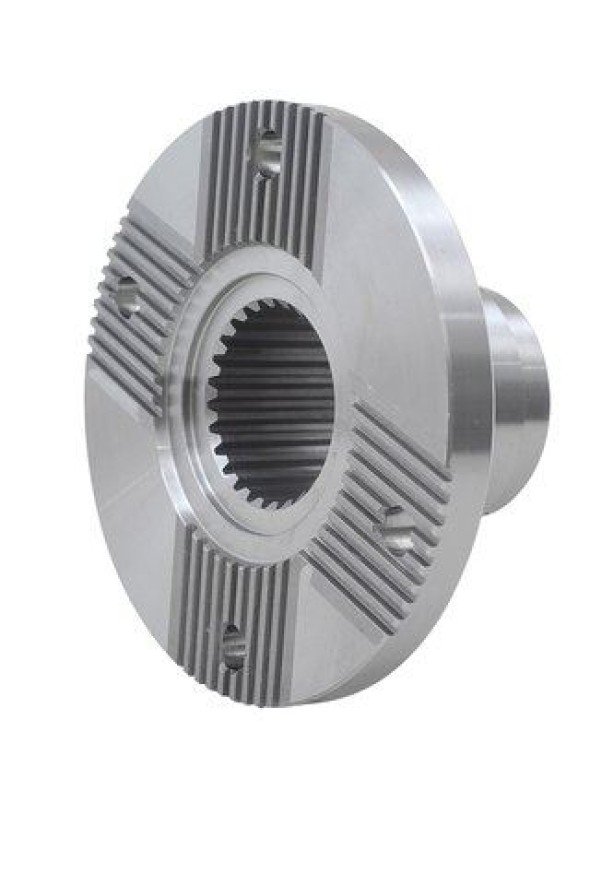

Description: COMPANION FLANGE 26 SPLINE (E) 4 HOLES
Applications:
- Central
Material: Steel
Original code: 41441 | SA37
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-624 | MERCEDES BENZ | Central | 84,10 | 200,00 | 101,00 | 15,50 | 26-E | 65,00 | 70,00 |
