(S-617) compatible with vehicles from the following manufacturers: MERCEDES BENZ.

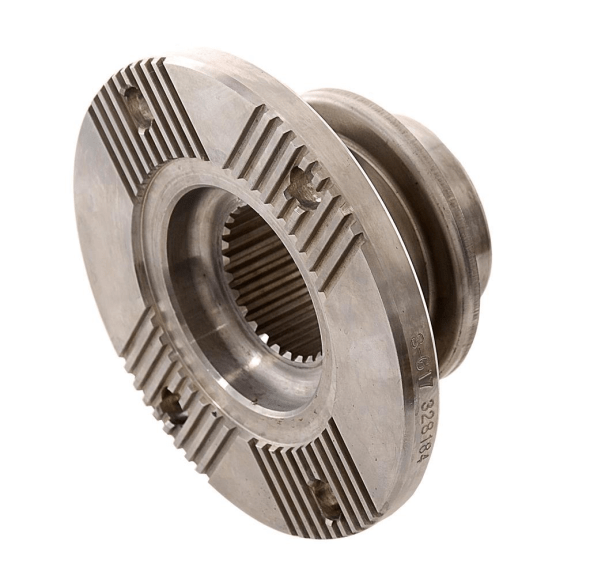

Description: COMPANION FLANGE 28 SPLINE (E) 4 HOLES
Applications:
- Diferencial
Material: Steel
Original code: 6933500045 | 6933530045 | 35411 | SA40
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-617 | MERCEDES BENZ | Diferencial | 80,00 | 180,00 | 90,00 | 15,50 | 28-E | 55,90 | 60,25 |
