(S-612) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S389 / S610 / S611 / S624 / S691 / S718 / SP3024

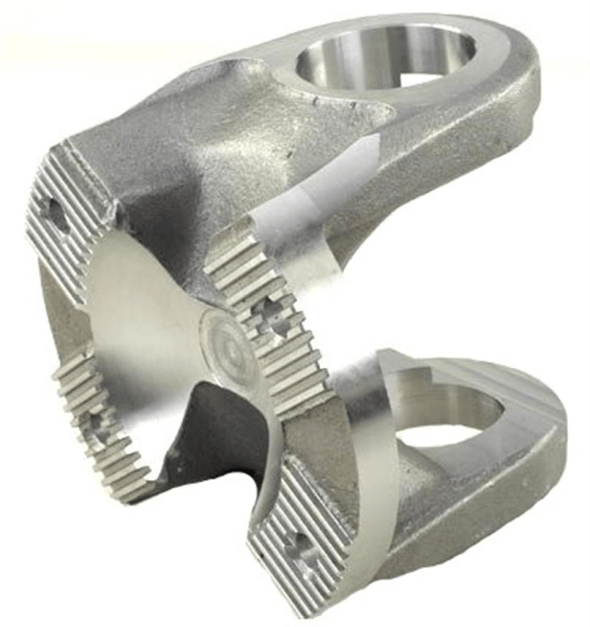

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Steel
Extra: CRUZETA: Ø 68MM X 117MM (TRAVA A TRAVA)
Original code: 41339 | 6564110301 | 6594110111

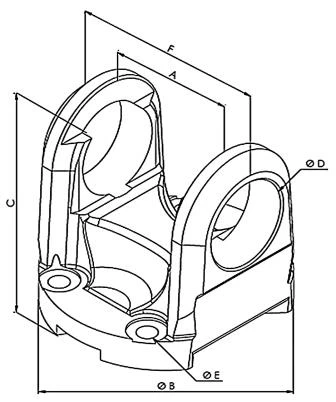

| Reference | Manufacturer(s) | Segment | A ( mm ) Medida trava da cruzeta - Interna |
B ( mm ) Ø do disco |
C ( mm ) Altura face ate centro olhal |
Ø D ( mm ) Ø Cruzeta |
Ø E ( mm ) Ø Furo |
F ( mm ) Medida trava cruzeta - Externo |
Cruzeta |
|---|---|---|---|---|---|---|---|---|---|
| S-612 | MERCEDES BENZ | Cardan | 123,10 | 200,00 | 114,50 | 68,00 | 15,50 | 182,00 | 9424100231 |
