(S-611) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S612 / S624 / S691 / S718 / SP3024

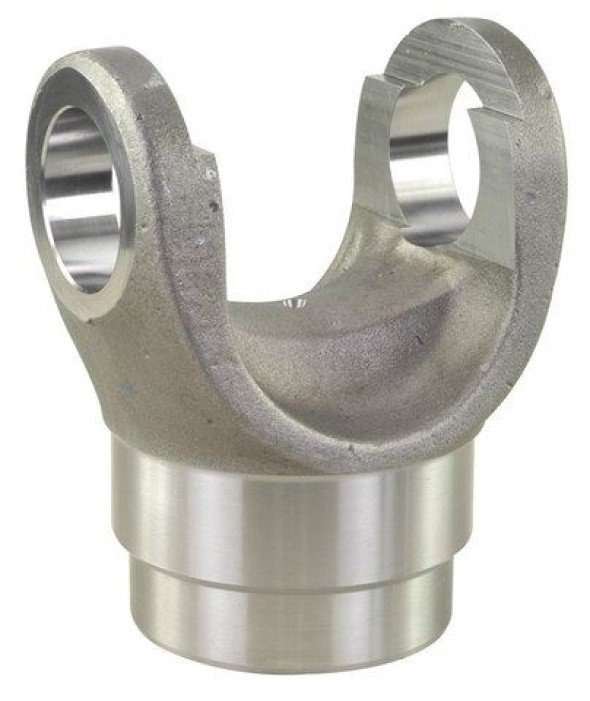

Description: TUBE YOKE
Applications:
- Cardan
Material: Steel
Extra: 60X117 (DE TRAVA A TRAVA)
Original code: 41340

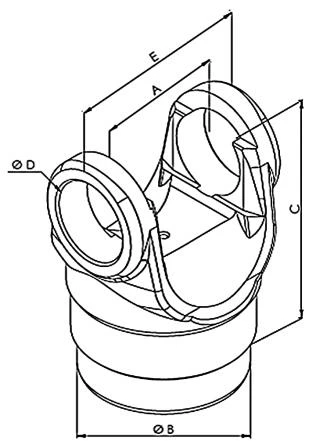

| Reference | Manufacturer(s) | Segment | A ( mm ) Medida trava da cruzeta - Interna |
B ( mm ) Ø Base de encaixe do tubo |
C (mm) Comprimento centro olhal ate encosto tubo |
Ø D ( mm ) Ø Cruzeta |
E ( mm ) Medida trava cruzeta - Externa |
Cruzeta |
|---|---|---|---|---|---|---|---|---|
| S-611 | MERCEDES BENZ | Cardan | 123,10 | 130,30 | 146,50 | 68,00 | 182,00 | ORIGINAL |
