(S-610) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S611 / S612 / S624 / S691 / S718 / SP3024

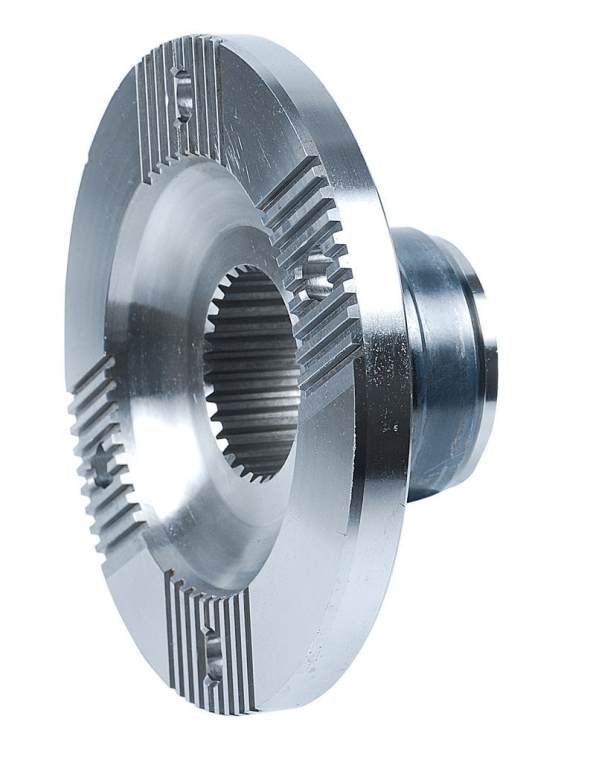

Description: COMPANION FLANGE 31 SPLINE (E) 4 HOLES
Applications:
- Diferencial
Material: Steel
Extra: DIFERENCIAL: HD7 - COM REBAIXO NO ALOJAMENTO DO RETENTOR
Original code: 9423531245 | 9423530745 | 35410 | SA34
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-610 | MERCEDES BENZ | Diferencial | 85,00 | 200,00 | 81,50 | 15,50 | 31-E | 61,00 | 65,30 |
