(S-609) compatible with vehicles from the following manufacturers: MERCEDES BENZ e VOLVO.
Assemble with: S342 / S386 / S621 / SC10369 / SC10392 / SC10410 / SP3002

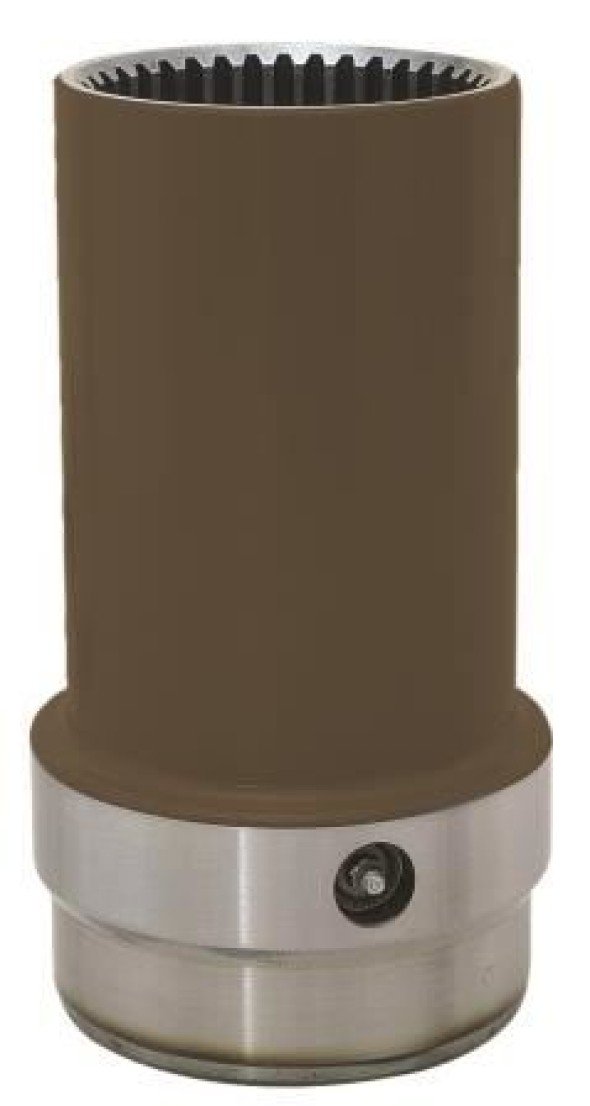

Description: SPLINED SLEEVE 30 SPLINE (E) WITH GREASE NIPPLE
Applications:
- Cardan
Material: Steel
Original code: 1405581X | 41008
Original code: 1405581X | 41008
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento total |
B ( mm ) Comprimento base ate o pescoço |
Ø C ( mm ) encaixe do tubo |
Ø D ( mm ) Base da luveira |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-609 | MERCEDES BENZ, VOLVO | Cardan | 210,00 | 171,50 | 100,50 | 91,60 | 30-E | 72,85 | 78,30 |
