(S-607) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C008 / S305 / S311 / S317 / S350 / SC10347 / SC10358 / SP3004 / SP3006 / SP3007 / SP3016 / SP3031

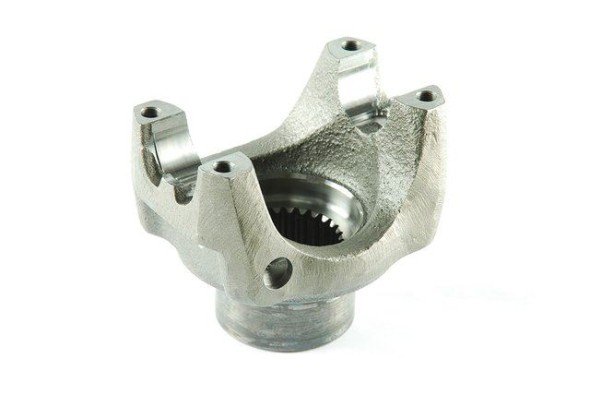

Description: END YOKE 26 SPLINE (E) THREAD M10X1,0MM
Applications:
- Diferencial
Extra: DIFERENCIAL: HL4 / PEÇA REFORÇADA PARA TRABALHO SEVERO EM ÔNIBUS ELETRÔNICO
Material: Aço
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-607 | SPL-90-1X | 116,5 | 67,9 | 41,3 | 26-E | M10 | 126 | 50,3 | 55,2 |
