(S-604) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S308 / S346 / S619 / SC10368 / SC10410 / SP3011 / SP3021

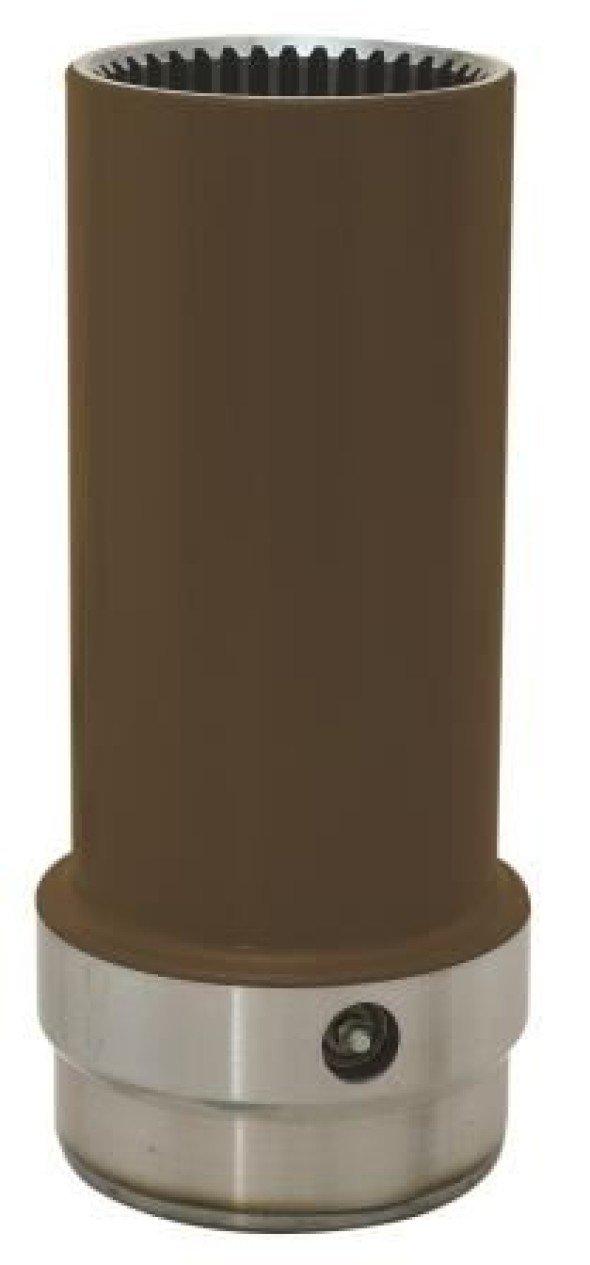

Description: SPLINED SLEEVE 38 SPLINE (E) WITH GREASE NIPPLE (LENGTHY)
Applications:
- Cardan
Material: Steel
Original code: 2505551X | 41013
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento total |
B ( mm ) Comprimento base ate o pescoço |
Ø C ( mm ) encaixe do tubo |
Ø D ( mm ) Base da luveira |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-604 | MERCEDES BENZ | Cardan | 287,00 | 253,50 | 120,50 | 111,10 | 38-E | 93,000 | 97,50 |
