(S-603) compatible with vehicles from the following manufacturers: MERCEDES BENZ, VOLKSWAGEN, VOLVO e IVECO.
Assemble with: S-303 / S-308 / S-373 / S-620 / SC-10367 / SC-10410 / SP-3011 / SP-3021

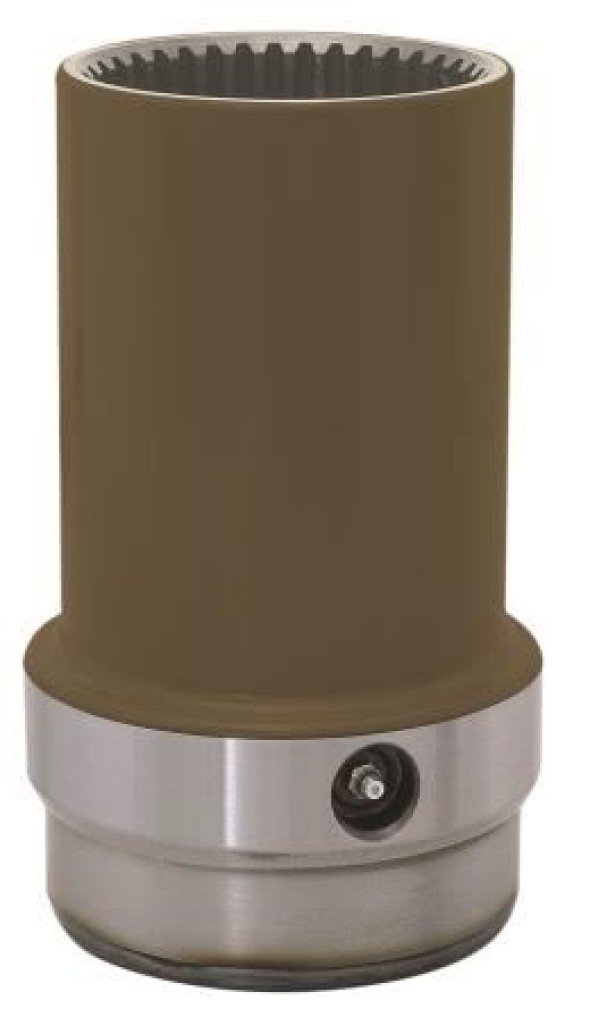

Description: SPLINED SLEEVE 38 SPLINE (E) WITH GREASE NIPPLE (SHORT)
Applications:
- Cardan
Material: Steel
Original code: 2505531X | 41010
Original code: 2505531X | 41010
Original code: 2505531X | 41010
Original code: 2505531X | 41010
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento total |
B ( mm ) Comprimento base ate o pescoço |
Ø C ( mm ) encaixe do tubo |
Ø D ( mm ) Base da luveira |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-603 | MERCEDES BENZ, VOLKSWAGEN, VOLVO, IVECO | Cardan | 215,00 | 181,50 | 120,50 | 111,10 | 38-E | 93,00 | 97,50 |
