(S-601) compatible with vehicles from the following manufacturers: MERCEDES BENZ e VOLVO.
Assemble with: C017 / S336 / S342 / S343 / S621 / S683 / SC10410 / SP3002

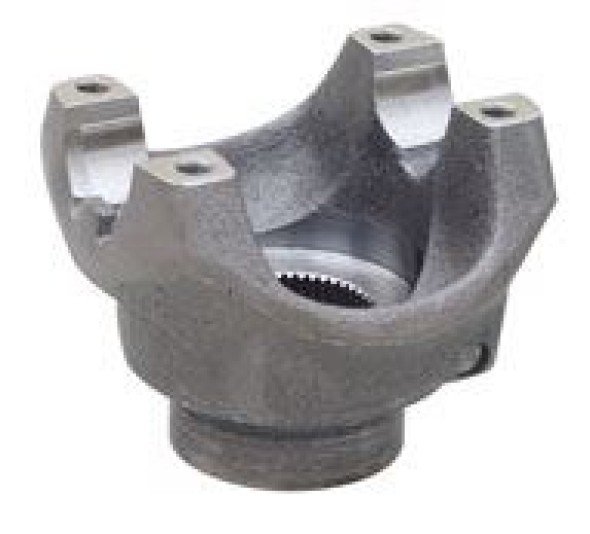

Description: END YOKE 39 SPLINE (E) THREAD M12X1,25MM
Applications:
- Diferencial
Material: Steel
Extra: DIFERENCIAIS: MS240 / MS155 / MS245 / RSS13035A
Original code: 9583530045 | 20521220 | 140415411 | 140415511 | 3260K1909 | 35382 | ST71
Original code: 9583530045 | 20521220 | 140415411 | 140415511 | 3260K1909 | 35382 | ST71
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-601 | VOLVO, MERCEDES BENZ | Diferencial | 133,00 | 76,20 | C-017 / SPL140-1X | 138,60 | 49,20 | M12X1,25 | 39-E | 48,80 | 51,40 |
