(S-528) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S-770 / S-771

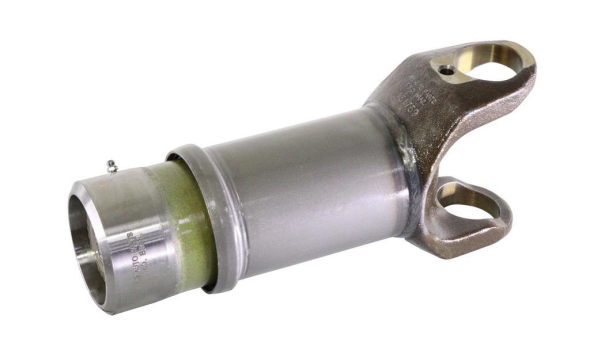

Description: SLIDING ASSEMBLY 26 SPLINES ( AND ) BETWEEN AXLES SCANIA G500 NTG
Applications:
- Cardan
- Cardan Entre Diferenciais
Material: Steel
Extra: Ø CRUZETA 55 MM
Original code: S528
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento centro olhal ate encosto tubo |
B ( mm ) Comprimento cruzeta sem travas |
C ( mm ) Ø Base encaixe do tubo |
Cruzeta |
Ø Cruzeta ( mm ) |
Quant. Estrias |
|---|---|---|---|---|---|---|---|---|
| S-528 | SCANIA | Cardan Entre Diferenciais, Cardan | 292,50 | 164,00 | 82,25 | C-025 / SPL170X | 55,00 | 26-E |
