(S-522) compatible with vehicles from the following manufacturers: VOLVO.
Assemble with: S203 / S308 / S620

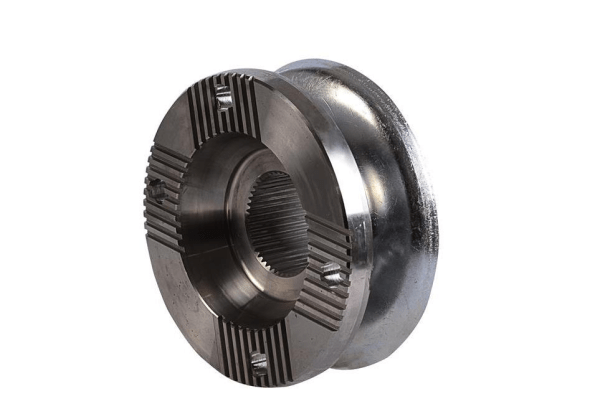

Description: COMPANION FLANGE 46 SPLINE (E)
Applications:
- Diferencial
Material: Steel
Extra: APLICADO EM DIFERENCIAIS RTS 2370B
Original code: 20706811
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-522 | VOLVO | Diferencial | 83,00 | 180,00 | 69,00 | 15,50 | 46-E | 57,50 | 60,20 |
